Note : this air assist is not applicable to S9 pro, buy s9 pro air assist, please check there

Main Features :

1. Official SCULPFUN S9 Air Assist:

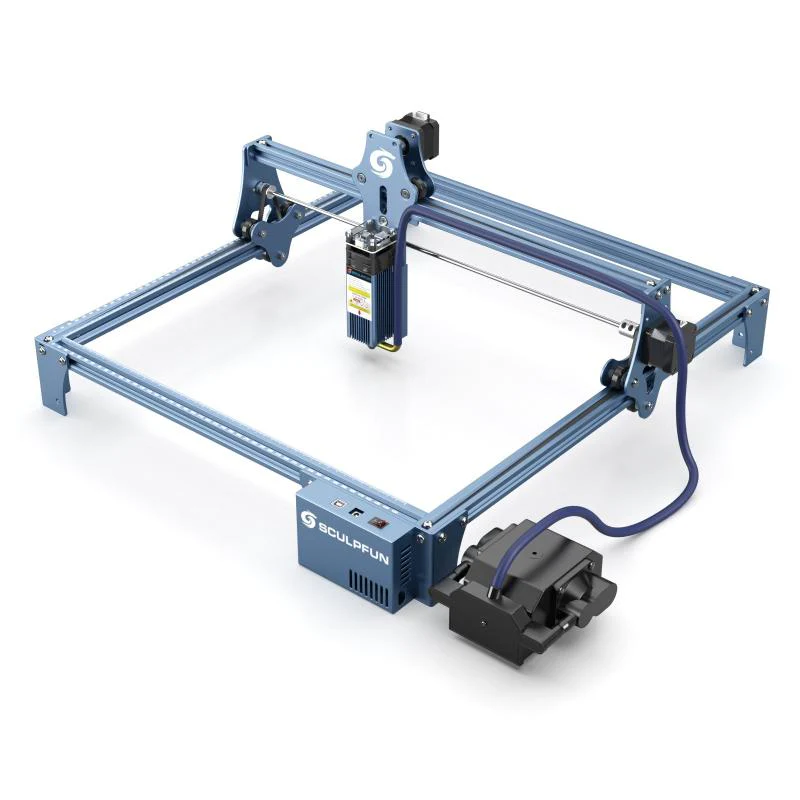

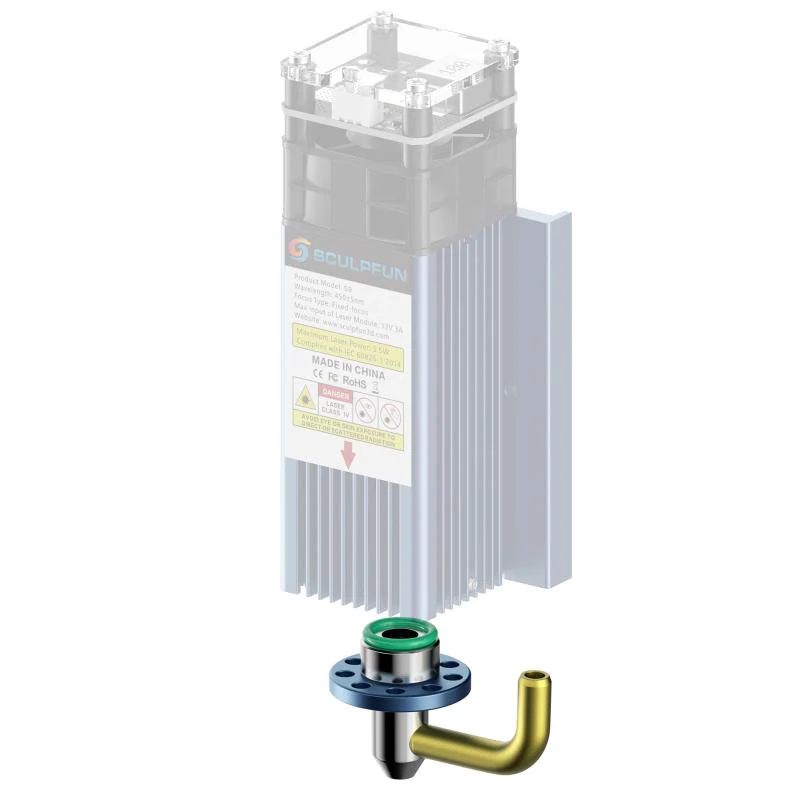

This is the standard S9 air assist nozzle designed by SCULPFUN, perfectly compatible with the S9 laser. Installation is extremely simple and can be completed in just a few minutes.

2. Faster and Cleaner Cutting:
The S9 air assist greatly improves the cutting ability of the S9 laser. It increases the cutting speed of plywood and MDF by 2-3 times, while providing a cleaner cut without smoke residue.

3. Excellent Air Sealing:

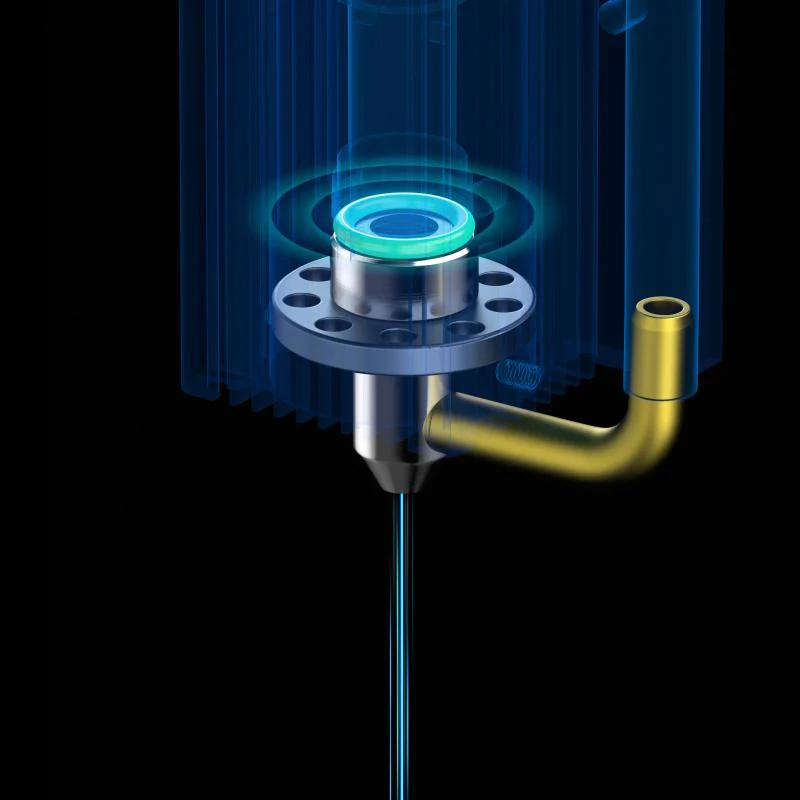

The S9 nozzle comes with a sealing ring to prevent air from leaking through gaps. Additionally, the seal helps keep dust out, which extends the lifespan of the S9 lens.

Product Model: SCULPFUN S9 Air Assist Kit

Air Pump Notice:
Please check the voltage carefully when purchasing a kit that includes the air pump to ensure it matches your local voltage. US Standard 110V, EU Standard 220V, please select the correct version.

Interface Size:
Outer Diameter of Air Assist Hose: 8mm
Inner Diameter of Hose: 7.5mm

Package Weight: 1.76kg
Package Dimensions: 255*192*145mm

Packing List:
1× 30L/min Air Pump (EU Standard 220V)
1× Nozzle Kit
1× Air Hose
1× Tool Kit
1× User Manual

Important Notes:

● Due to the powerful air assist, do not operate the laser engraver unattended. If you are not present, please pause the machine.
● For detailed machine usage instructions and parameter settings, please refer to the user manual.
● Always wear safety goggles when operating the laser engraver.
● Do not touch the laser with your hands, as it may cause burns.
● Avoid subjecting the machine to strong impacts.
● This product is not suitable for children under 14. Children aged 14 and above must be supervised by an adult.
● Do not direct the laser at any reflective surface, as it could cause injury to the operator or damage to the laser.
